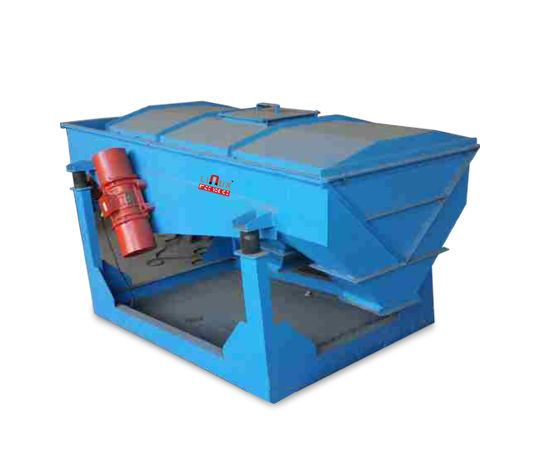

Rectangular Vibrating Screen
High-Capacity Screening & Grading System
Ideal for bulk material screening where large capacity & continuous operation is required.
The Rectangular Vibrating Screen is engineered for high-capacity separation and grading of powders, granules, and solid-liquid mixtures. Operating through linear vibration motion powered by heavy-duty twin motors, it ensures high throughput output while maintaining consistent screening accuracy.
Its wide screening area, modular deck system, and high mechanical efficiency make it ideal for industries requiring continuous, long-cycle processing with minimal downtime.
Technical Specifications
| Specification | Details |
|---|---|
| Screen Size | 600×1200 mm to 2000×5000 mm |
| Deck Options | Single / Double / Triple |
| Motor | 1 – 5 HP × 2 Units |
| Output Capacity | 1 TPH – 50 TPH |
| Material of Construction | SS304 / SS316 / MS |
| Screen Type | Wire Mesh / Perforated Sheet / PU Screen |
| Vibration Type | Linear Motion |
Key Features
- Heavy-duty industrial-grade structure
- Large screening surface ensures high throughput
- Modular, easy-to-replace screen decks
- Minimal clogging with efficient discharge flow
- Designed for continuous long-cycle operation
Applications
- Cement
- Coal
- Food Grains
- Plastic Flakes
- Fertilizer
- Minerals
- Salt & Sugar
