Drum Magnetic Separator
Continuous Removal of Ferrous Contaminants
High-capacity magnetic separation solution designed for industrial processing lines and bulk material handling.

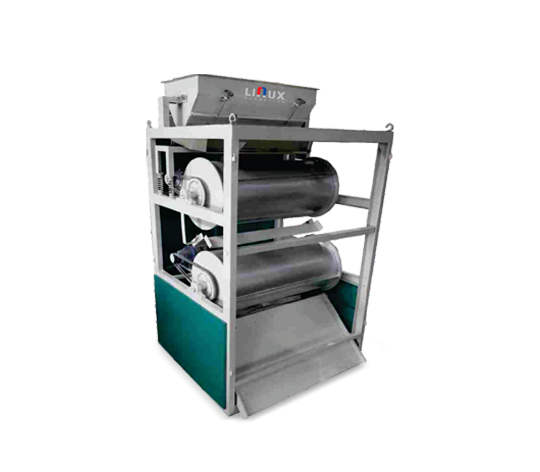

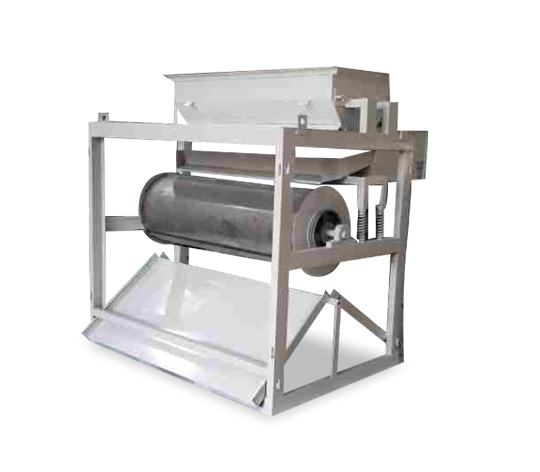

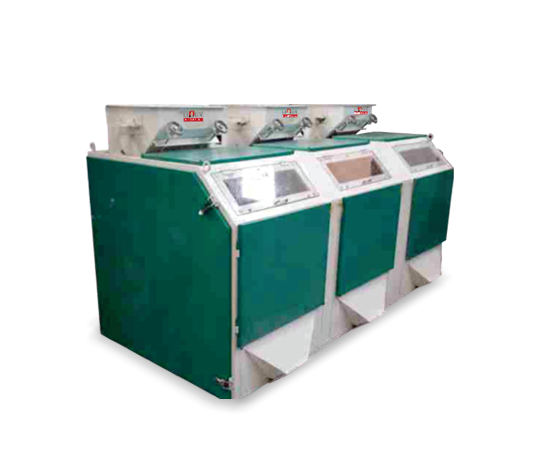

The Drum Magnetic Separator is engineered for automatic and continuous removal of magnetic impurities from raw materials during production flow. Available in Single Drum, Double Drum, and Multi-Stage Drum configurations, it is suitable for heavy-duty industrial applications such as mineral processing, food production, chemical plants, and recycling facilities.
The rotating magnetic drum attracts and separates ferrous contaminants, ensuring high throughput capacity, reduced equipment wear, and minimized production downtime.
Technical Specifications
| Specification | Single Drum | Double Drum | Multi-Stage |
|---|---|---|---|
| Drum Width | 300–1200 mm | 600–1500 mm | 600–1800 mm |
| Drum Diameter | 300–600 mm | 300–900 mm | 300–1200 mm |
| Magnet Strength | 2500–6000 Gauss | 3000–7000 Gauss | 5000–11000 Gauss |
| Motor Power | 1–5 HP | 3–7.5 HP | 5–10 HP |
| Drum Shell Material | SS304 / MS with SS cladding | ||
| Working Mode | Continuous Operation | ||

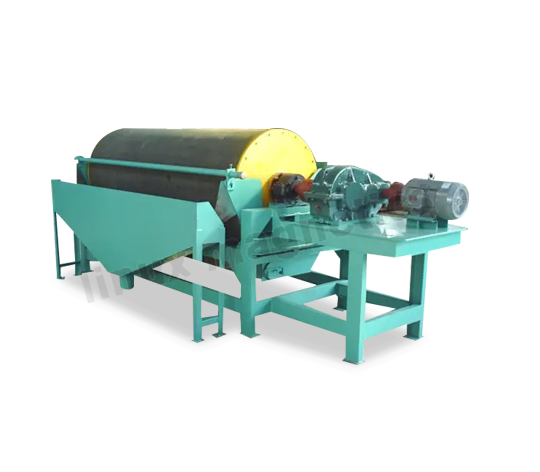

| Input Material Type | Dry or wet material | ||
| Installation | Inline / Below hopper / On conveyors | ||
Key Features
- Heavy-duty industrial construction
- High magnetic field intensity
- Continuous non-stop separation process
- Designed for bulk material handling
- Low noise & minimal maintenance
- Available in custom width & configurations
- Suitable for wet & dry processing
Advantages
- Improves product purity and quality
- Protects downstream processing machinery
- Reduces manual cleaning requirements
- Handles large volumes with ease
- Long operating life & stable performance
- Low operational cost
Applications
- Mining: Coal, Limestone, Iron Ore
- Refractory & Ceramic: Bauxite, Feldspar, Quartz
- Chemical & Fertilizer: Powdered solids
- Food & Grain: Wheat, Maize, Rice, Spices
- Recycling: Metal scrap separation
- Stone Crushing: Stone dust & powder cleaning
