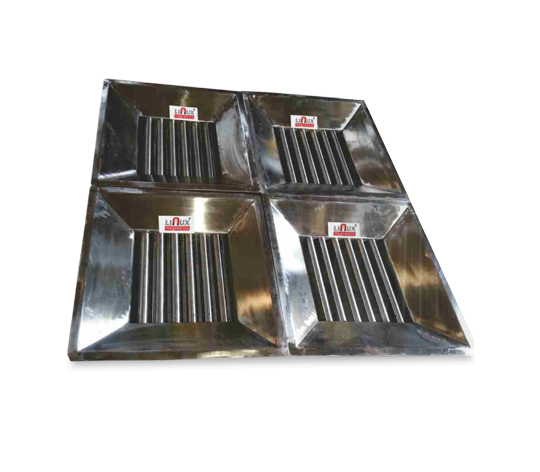

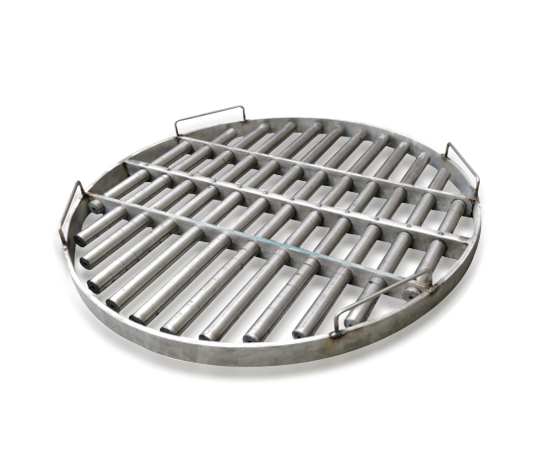

Grill Magnet
High-Power Magnetic Grid for Powder & Granule Filtration
Designed to capture fine ferrous contamination from free-flowing materials in hoppers, bins & chutes.
The Grill Magnet (also called Magnetic Grid or Magnetic Grate) is designed using high-intensity magnetic rods arranged in a grid formation, delivering excellent separation performance for free-flowing powders and granular materials. Installed at the entry point of hoppers, bins, and material processing equipment, it ensures effective metal contamination control with minimal installation effort and low maintenance.
Suitable for food-grade as well as industrial applications, Grill Magnets improve product purity, protect processing equipment, and ensure smooth production flow across multiple industries.
Technical Specifications
| Specification | Details |
|---|---|
| Shape Options | Square / Round / Rectangular |
| Magnetic Tube Diameter | 25mm / 32mm / 40mm |
| Magnet Strength | 8000 – 12000 Gauss |
| Rod Spacing | 25–50 mm |
| Construction Material | SS304 / SS316 |
| Surface Finish | Mirror Polish |
| Cleaning | Manual / Easy-Clean |
| Installation | Drop-in type |
| Working Temperature | Up to 120°C |
| Flow Type | Gravity & free-flow material |
Key Features
- High-intensity magnetic tubes capture fine metals
- Custom shapes & sizes for perfect system fit
- Simple installation without modification
- Durable stainless-steel welded framework
- Low maintenance & easy cleaning
- Enhanced flow design prevents clogging
- Ideal for hopper & bin mounting
Advantages
- Removes iron contamination down to micron size
- Prevents screw, die & extruder damage
- Improves final product quality and safety
- Extends equipment lifespan
- Cost-effective magnetic separation solution
Applications
- Food & Beverage: Wheat, flour, spices, sugar, coffee
- Plastics & Polymers: PET, PVC, HDPE, LDPE granules
- Chemicals & Pharma: Resin, powder chemicals
- Minerals & Ceramics: Talc, silica, feldspar, clay
- Animal Feed: Pellet & grain feed
- Recycling: Shredded waste & plastic flakes
