Drawer Magnet
High-Efficiency Multi-Stage Magnetic Filtration for Powders & Granules
Designed for fine ferrous contamination removal in powder, resin & plastic granule processing systems.

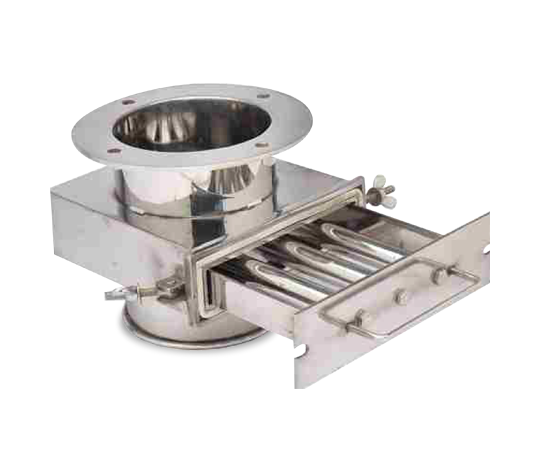

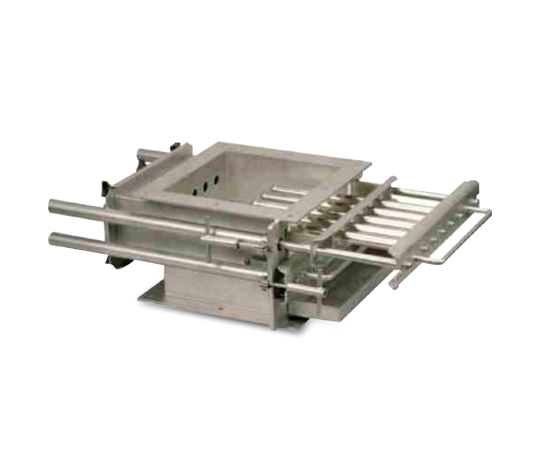

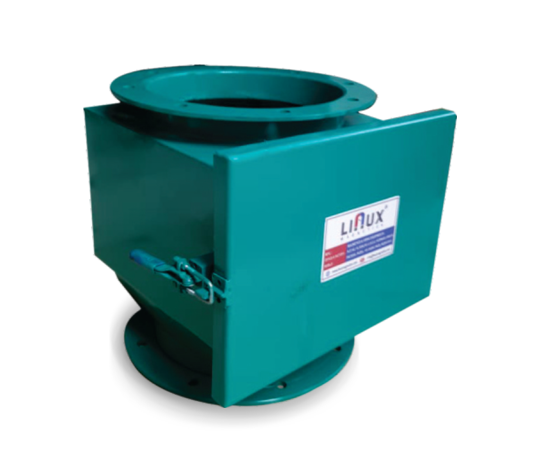

The Drawer Magnet (also known as Drawer-in-Housing Magnet) is built with multiple layers of magnetic grids arranged in a vertical cascade, designed to extract fine iron contaminants from free-flowing materials. As material passes through the magnetic drawers, micron-sized ferrous particles are trapped, ensuring superior product purity.
Compact and easy to integrate, the Drawer Magnet is ideal for plastic processing, food industries, chemical production, pharmaceuticals, and powder conveying systems. It installs seamlessly under hoppers, chutes, and pneumatic feed lines.
Technical Specifications
| Specification | Details |
|---|---|
| Magnetic Tube Diameter | 25 mm – 50 mm |
| Magnet Strength | 8000 – 13000 Gauss |
| Number of Stages | Single / Double / Multi-Stage |
| Construction Material | SS304 / SS316 |
| Surface Finish | Mirror Polish |
| Cleaning System | Manual Pull-Out Drawer / Easy Clean |
| Installation Type | Inline under hopper / chute |
| Material Compatibility | Dry powders, granules & pellets |
| Operating Temperature | Up to 120°C (options available) |
Key Features
- High magnetic capture rate for fine metal particles
- Multi-stage magnetic grid configuration
- Easy-to-clean pull-out drawer system
- Food-grade stainless steel construction
- Compact design for OEM machinery integration
- Custom sizes available for existing systems
- Smooth material flow without blockage
Advantages
- Removes micron-level ferrous contamination
- Protects injection molding screws & extruders
- Enhances product quality & purity
- Reduces machine downtime & maintenance costs
- Suitable for high-pressure & vacuum conveying lines
Applications
- Plastic Processing: PET, PVC, HDPE, LDPE pellets & granules
- Food & Spices: Flour, sugar, spices, milk powder, coffee
- Chemical & Pharma: Additives, powders, fine granules
- Minerals & Ceramics: Quartz, talc, kaolin, silica
- Agriculture: Fertilizer powder, cattle feed
