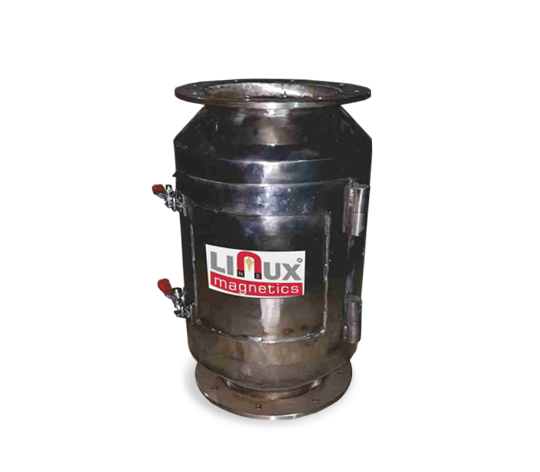

Bullet Magnet
High-Velocity Magnetic Separator for Pneumatic & Gravity Pipeline Systems
Ideal for removing ferrous contamination from high-speed pipeline flows of powders, grains & granular materials.
The Bullet Magnet is designed for installation in pneumatic or gravity-fed pipeline systems where materials travel at high speed. Its streamlined bullet-shaped magnetic core ensures smooth flow, minimizes turbulence, and prevents bridging or material accumulation.
Featuring a high-intensity Rare-Earth NdFeB magnetic cartridge, it efficiently captures ferrous contaminants ranging from fine metal dust to larger tramp iron pieces. This makes it ideal for industries requiring continuous, high-purity output with uninterrupted product flow.
Technical Specifications
| Specification | Details |
|---|---|
| Pipe Line Size | 2” – 24” |
| Magnet Type | Rare Earth NdFeB |
| Magnet Strength | 6000 – 12000 Gauss |
| Pressure Compatibility | Suitable for high-pressure conveying |
| Housing Material | SS304 / SS316 |
| Internal Cone Material | Stainless Steel |
| Temperature Range | Up to 120°C |
| Flow Type | Gravity & Pneumatic Conveying |
| Cleaning System | Manual Easy-Clean |
| Installation Orientation | Vertical / Horizontal / Inclined |
Key Features
- High-intensity bullet-shaped magnetic core
- Streamlined design prevents turbulence & bridging
- Strong stainless-steel construction
- Quick-access inspection & cleaning
- Compact & easy inline installation
- Ideal for high-speed conveying systems
- Custom sizes & connection options available
Advantages
- Consistent & continuous separation efficiency
- Captures ferrous contaminants without blocking flow
- Enhances final product purity & reduces rejections
- Protects extruders, grinders & downstream equipment
- Reduces downtime & maintenance costs
Applications
- Food & Grain: Wheat flour, pulses, cereals, spices
- Plastics & Polymers: PVC, PET, LDPE, HDPE granules
- Chemical & Pharma: Powder chemicals, granules
- Minerals & Ceramics: Talc, silica, kaolin
- Agriculture: Fertilizers, animal feed
- Recycling: Plastic flakes & granulated scrap
